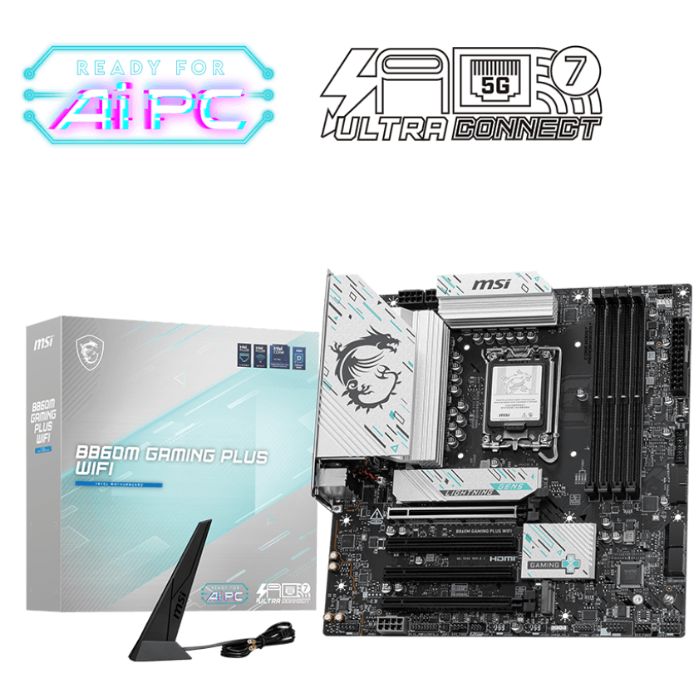

MSI Mainboard B860M GAMING PLUS WIFI

The MSI B860M GAMING PLUS WIFI is a Micro-ATX motherboard engineered for Intel® Core™ Ultra Series 2 processors, delivering cutting-edge performance, next-gen connectivity, and unbeatable value for gamers and creators.

Powered by the Intel® B860 chipset and LGA 1851 socket, it offers support for DDR5 memory up to 256GB with speeds reaching 8800+ MHz (OC) — ensuring high-speed responsiveness, smooth multitasking, and optimal gaming performance.

⚙️ High-Speed DDR5 Memory & CPU Support

Experience ultimate stability and speed with 4x DDR5 UDIMM slots, supporting Intel® XMP 3.0 and Dual-Channel architecture for enhanced memory performance.
Whether you’re gaming, editing, or rendering, the B860M GAMING PLUS WIFI is built to keep up with your most demanding workloads.

🎮 Next-Gen Expansion & Graphics Support

Equipped with 4x PCIe x16 slots, including one PCIe 5.0 x16 slot for high-end GPUs, this motherboard delivers maximum graphics bandwidth for next-gen gaming.
Storage is equally impressive with 3x M.2 slots (PCIe 5.0/4.0) and 4x SATA 6Gb/s ports, allowing for lightning-fast data access and flexible storage options.
Supports RAID 0, 1, 5, 10 for both NVMe and SATA drives.

⚡ Thunderbolt™ 4 & High-Speed USB Connectivity

The onboard Thunderbolt™ 4 port (40Gbps) supports USB4 devices, 8K display output, and up to 15W charging — perfect for content creators and power users.
Multiple USB 10Gbps / 5Gbps / 2.0 ports ensure fast peripheral connectivity and compatibility with modern devices.

🌐 Elite Networking with Wi-Fi 7 & Killer™ 5G LAN

Stay ahead of the competition with Intel® Killer™ BE1750x Wi-Fi 7 delivering up to 5.8Gbps wireless speeds and MU-MIMO / Bluetooth® 5.4 for ultra-low latency gaming.
The Intel® Killer™ E5000 5Gbps LAN ensures high-speed, stable wired connections for pro-level gaming and streaming.

🔊 Immersive Audio & Visual Experience

Enjoy crystal-clear sound through Realtek® ALC897 7.1-channel HD audio.
For display, the motherboard supports HDMI™ 2.1, DisplayPort 1.4, and Type-C DisplayPort (Thunderbolt 4) — enabling up to 8K@60Hz or 4K@120Hz video output.

💡 Compact Power & Gaming Aesthetics

The mATX (Micro-ATX) design balances size and performance, making it ideal for compact gaming rigs.
It features ARGB headers, EZ Debug LEDs, and reinforced power connectors, blending premium aesthetics with reliability and cooling efficiency.

🔑 Key Features:

• Chipset: Intel® B860

• Socket: LGA 1851 (Supports Intel® Core™ Ultra / Series 2 CPUs)

• Memory: 4x DDR5 UDIMM, up to 256GB, 8800+ MHz (OC)

• Graphics Output: HDMI™ 2.1, DisplayPort 1.4, Type-C DisplayPort (Thunderbolt™ 4)

• Expansion: 4x PCIe x16 slots (PCIe 5.0 / 4.0)

• Storage: 3x M.2 (PCIe 5.0/4.0) + 4x SATA 6Gb/s

• Networking: Intel® Killer™ E5000 5Gbps LAN + Killer™ BE1750x Wi-Fi 7 + Bluetooth® 5.4

• Audio: Realtek® ALC897 7.1-channel HD

• Form Factor: Micro-ATX (243.84mm x 243.84mm)

• Lighting: 2x ARGB + 1x RGB headers, EZ Debug LEDs

• Thunderbolt™ 4: 40Gbps, 8K display support, up to 15W power output
