Synology High Density HD6500 (Petabyte NAS)

Call for Solution Sizing

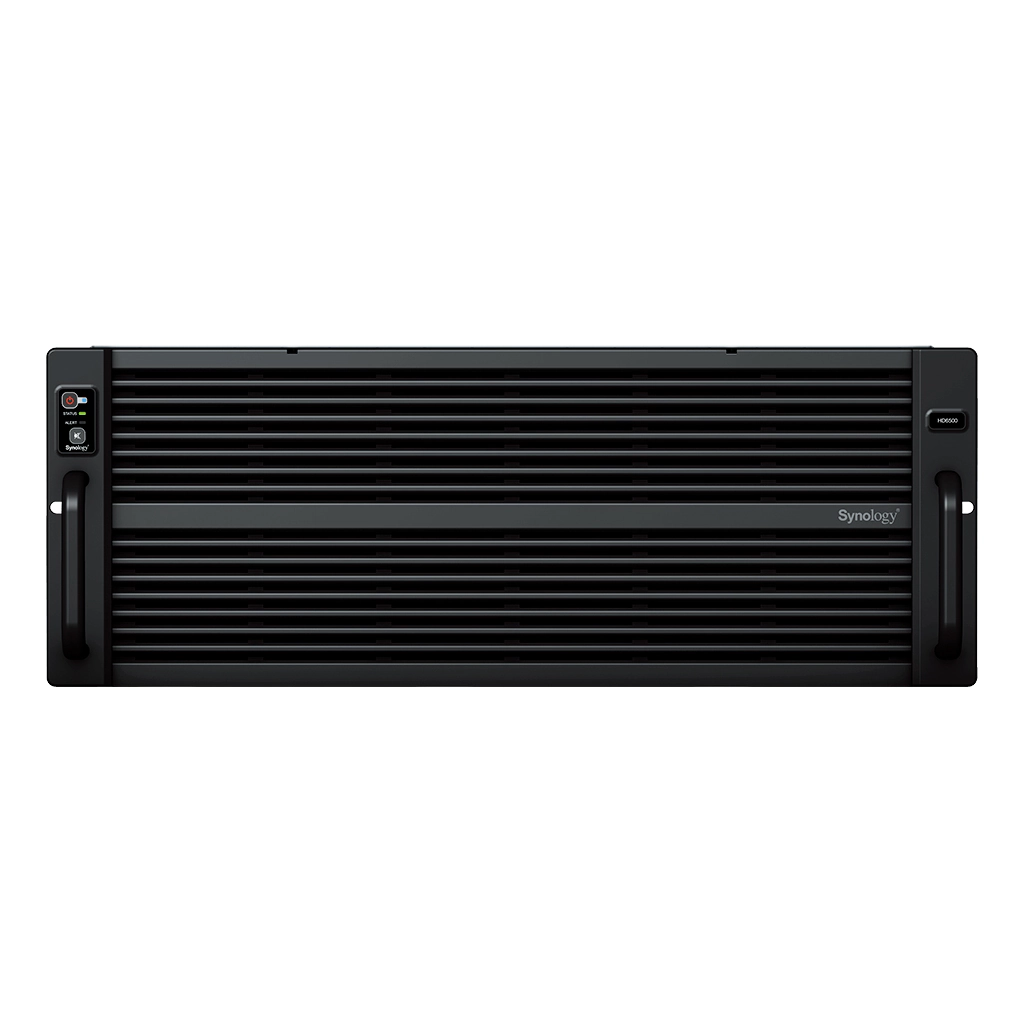

Synology HD6500–60-bay, 4U high-density storage server with dual Intel Xeon processors, 64GB ECC memory, dual 10GbE, redundant power supplies and expansion up to 300 drives.

Category: NAS (Network Attached Storage), Storage

Synology HD6500 is a high-density 60-bay, 4U rackmount storage server designed for enterprise backup, large-scale file storage, surveillance and multi-petabyte data management. Powered by dual Intel® Xeon® Silver processors with 64GB DDR4 ECC memory, it features dual 10GbE, redundant 1600W power supplies and expansion support up to 300 drives. Running Synology DSM, it delivers exceptional scalability, performance and enterprise-grade reliability.
Data Sheet

Brand	Synology
Model	HD6500
Product Type	High-Density Storage Server
Form Factor	4U Rackmount
Drive Bays	60 × 3.5-inch SAS HDD / 2.5-inch SATA SSD
Maximum Drive Bays	300 with 4 × RX6025sas
Processor	2 × Intel Xeon Silver 4210R
CPU	10 Cores / 20 Threads (Each CPU)
System Memory	64GB DDR4 ECC RDIMM
Maximum Memory	512GB
Network Ports	2 × 10GbE RJ-45 + 2 × 1GbE RJ-45
Expansion	4 × PCIe Gen 3 Slots
Power Supply	Dual 1600W Redundant Power Supplies
Operating System	Synology DSM
Ideal For	Enterprise Backup, Large-Scale Storage, Surveillance and Archiving
Maximum Camera Support	Up to 1,000 IP Cameras
Warranty	5-Year Limited Warranty
