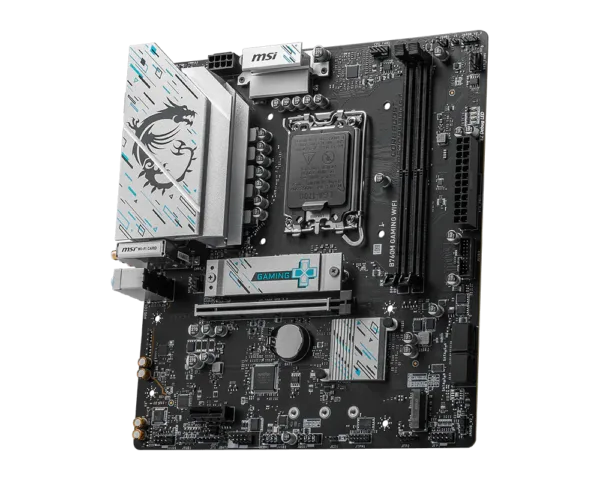

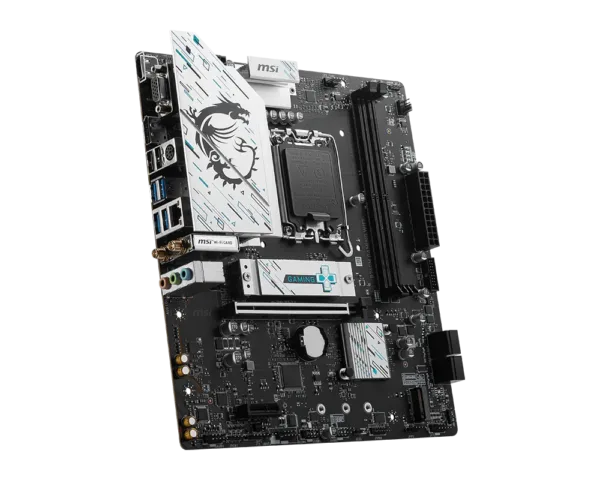

MSI B760M GAMING WIFI Motherboard (Intel B760, LGA 1700, DDR5, Micro-ATX)
Micro-ATX Intel B760 gaming motherboard for 12th/13th/14th Gen Intel Core CPUs, with DDR5-8000+ (OC), PCIe 4.0, dual M.2 Gen4 (M.2 Shield Frozr), Wi-Fi 6E and 2.5G LAN.
Product Description

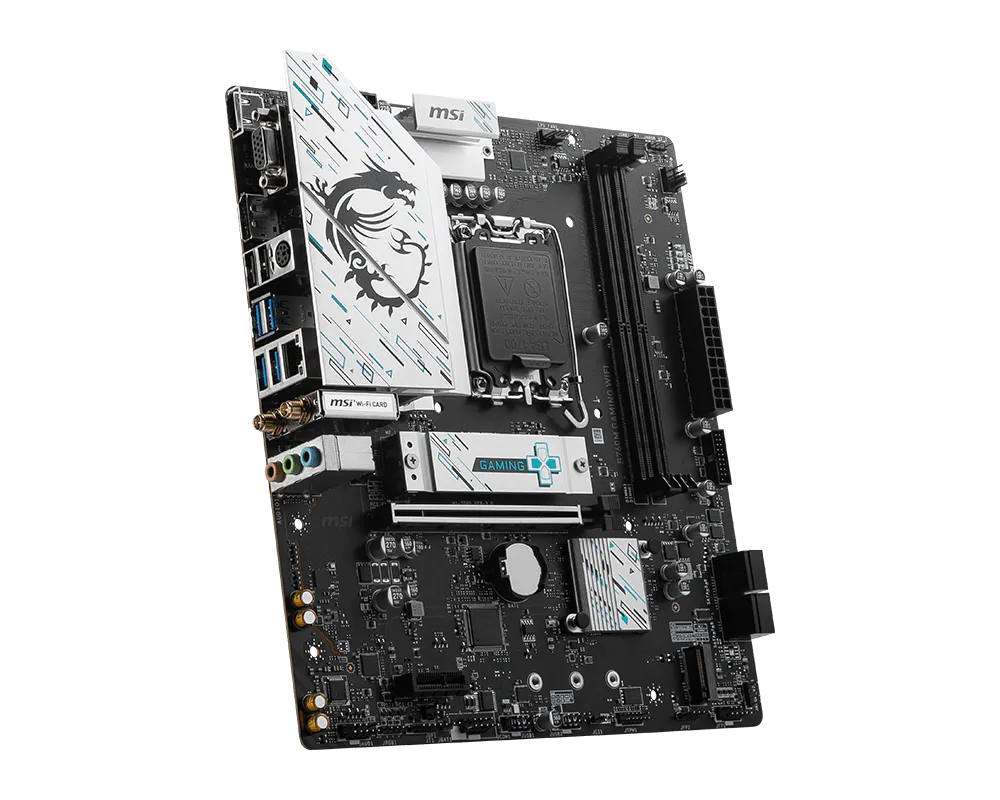

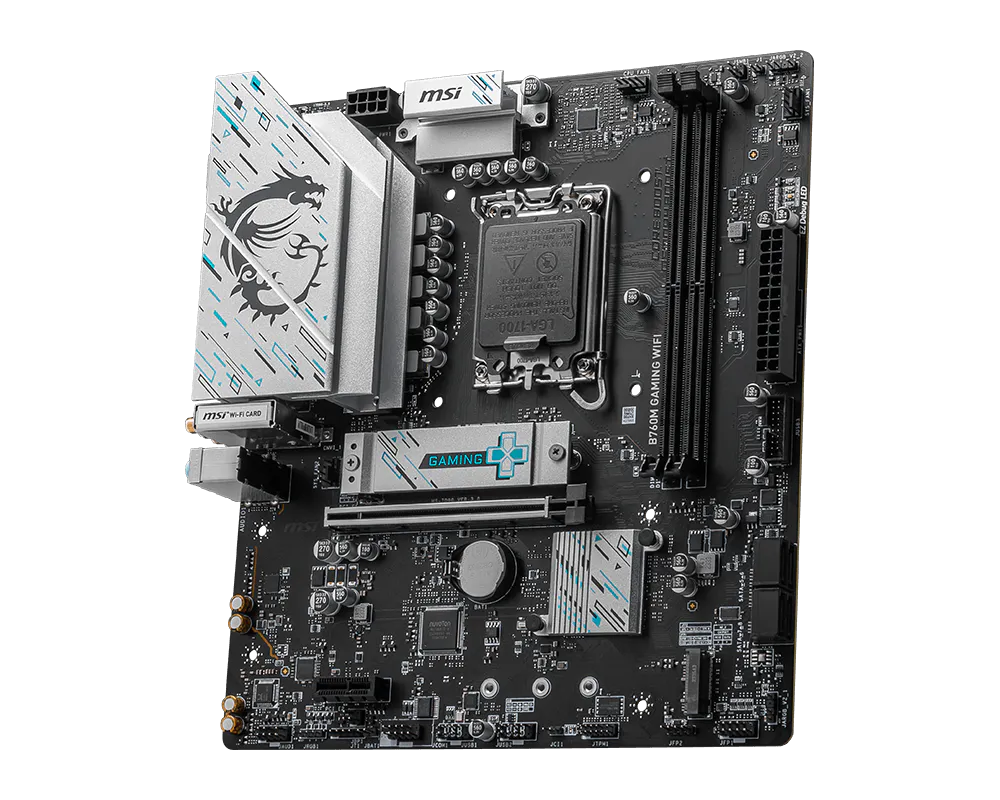

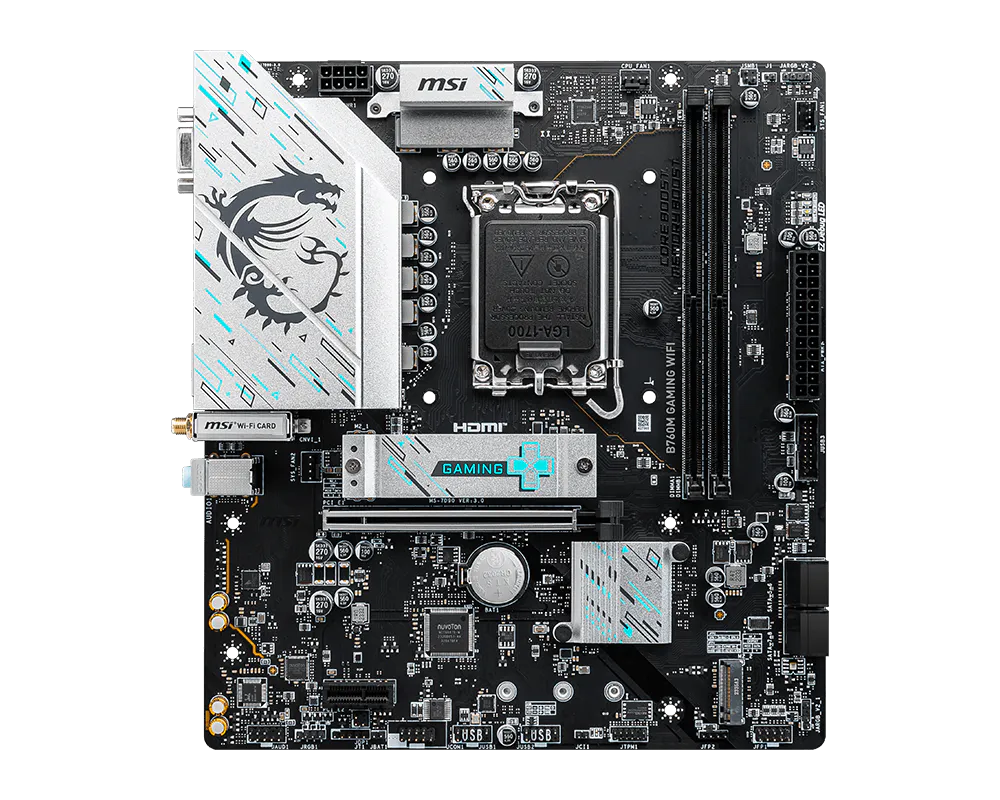

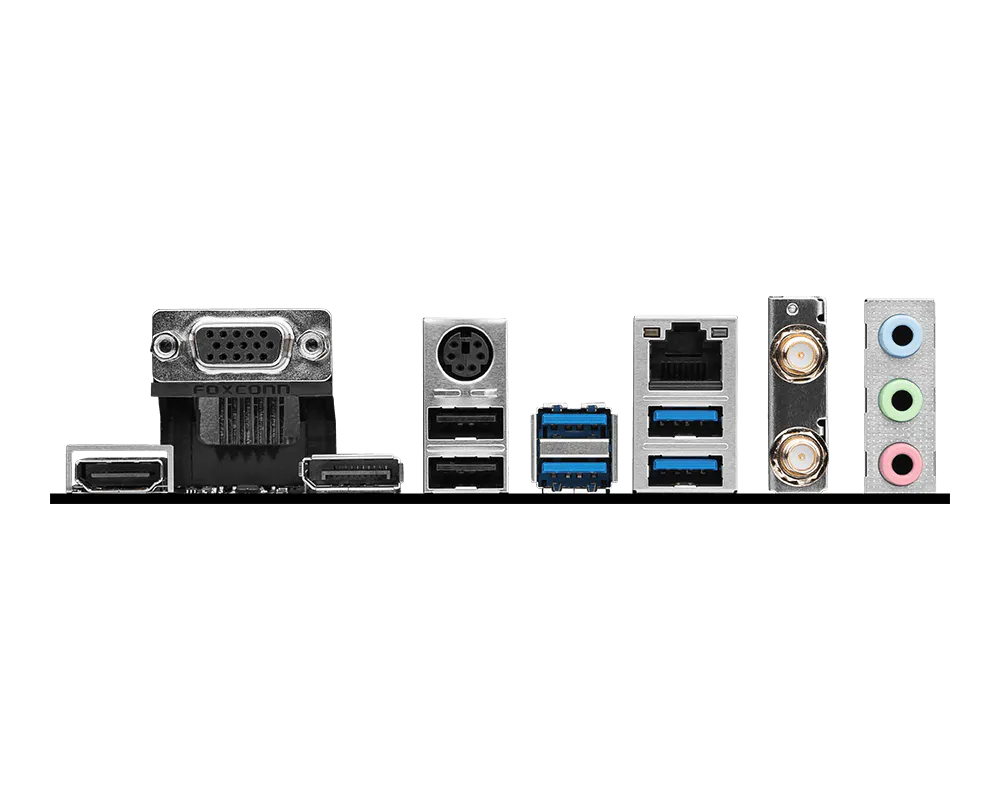

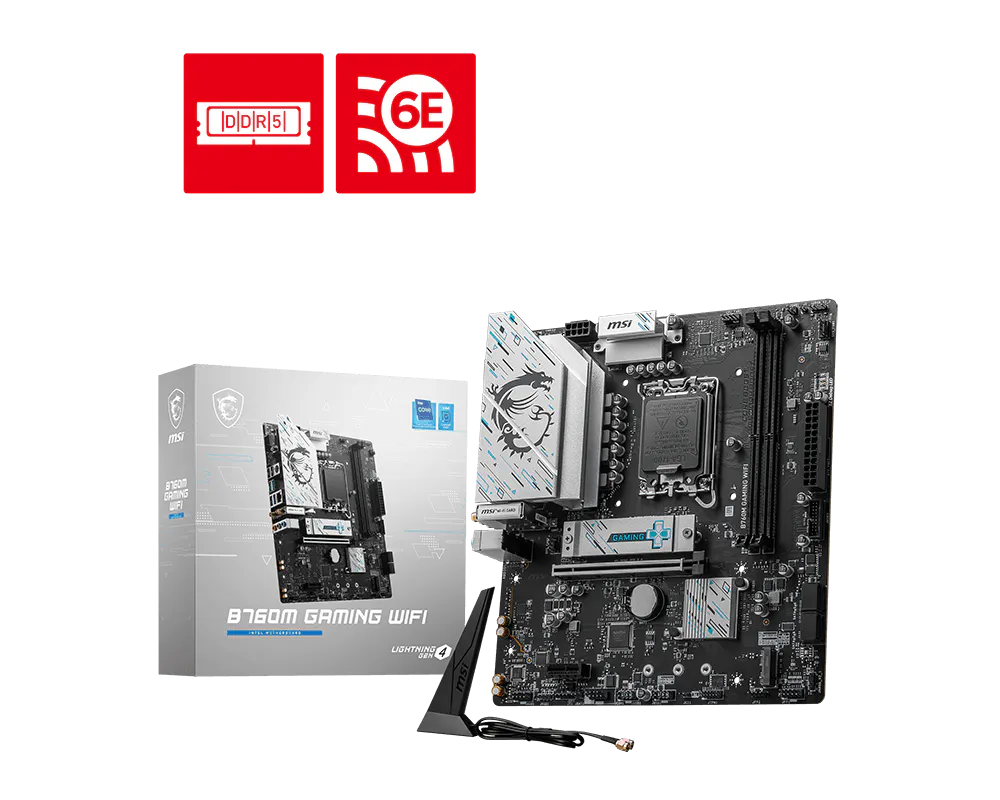

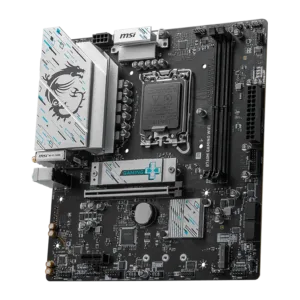

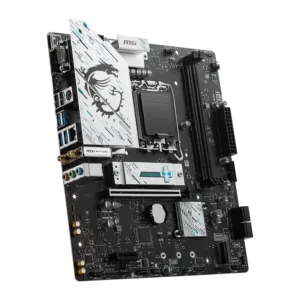

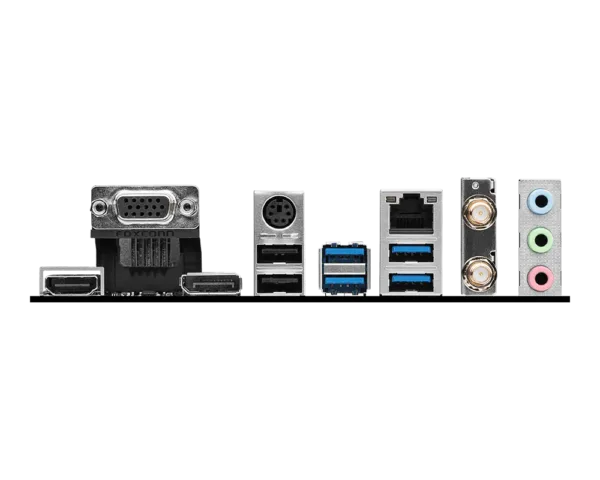

The MSI B760M GAMING WIFI is a Micro-ATX gaming motherboard on the Intel B760 chipset and LGA 1700 socket, supporting Intel 14th/13th/12th Gen Core, Pentium Gold and Celeron CPUs. It supports two DDR5 DIMMs in dual channel up to DDR5-8000+ MHz (OC), a PCIe 4.0 x16 slot, and dual M.2 Gen4 x4 storage with M.2 Shield Frozr cooling plus four SATA 6Gbps ports. It features Intel Wi-Fi 6E with Bluetooth 5.3, Realtek 2.5G LAN, six USB 3.2 Gen 1 ports and 8-channel HD Audio with Audio Boost, with HDMI 2.1, DisplayPort 1.4 and VGA outputs.
Key Specs: Socket: LGA 1700 | Chipset: Intel B760 | CPU: Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron | Memory: 2x DDR5, dual channel, up to DDR5-8000+ MHz (OC) | Graphics: 1x PCIe 4.0 x16, 1x PCIe 4.0 x1 | Storage: 2x M.2 Gen4 x4 (M.2 Shield Frozr), 4x SATA 6Gbps | USB: 6x USB 3.2 Gen 1 (5Gbps), 6x USB 2.0 | LAN: Realtek RTL8125B 2.5G | Wireless: Intel Wi-Fi 6E, Bluetooth 5.3 | Audio: 8-channel (7.1) HD Audio with Audio Boost | Display: HDMI 2.1, DisplayPort 1.4, VGA | Form factor: Micro-ATX
